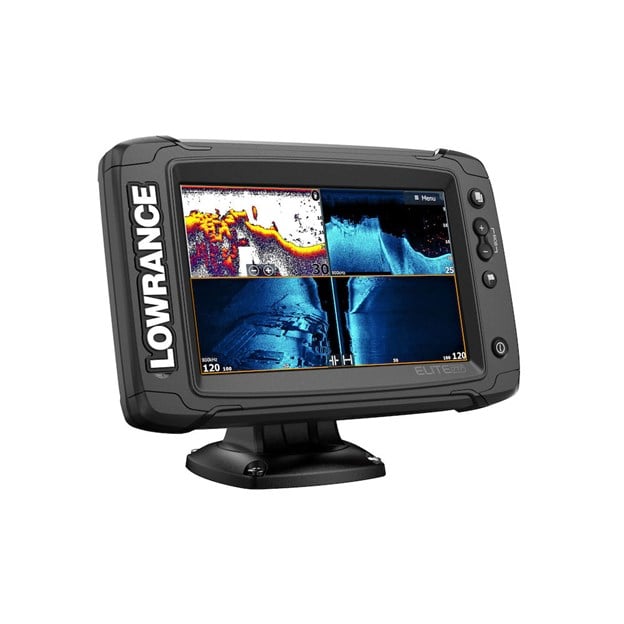

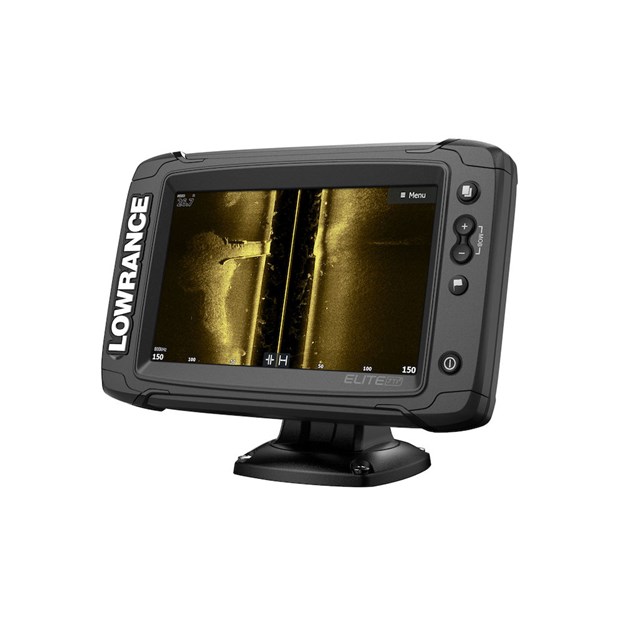

Elite-7 Ti² US Inland, HDI Transducer

PROFESSIONAL LEVEL TECHNOLOGY FOR ALL ANGLERS

Elite Ti² packs Active Imaging™, our highest quality sonar ever, FishReveal™, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation. Plus, with features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole® integration – Elite Ti² was designed to help you have an easier time finding fish.

NEW ACTIVE IMAGING

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, NEW Active Imaging™ sonar delivers the most superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

Transducers sold separately.

WIRELESS NETWORKING

For the first time ever with the Elite series, you won’t need any cables to share sonar, waypoint and route data between Elite Ti² displays with the new wireless networking capability.

MAPPING IN REAL-TIME

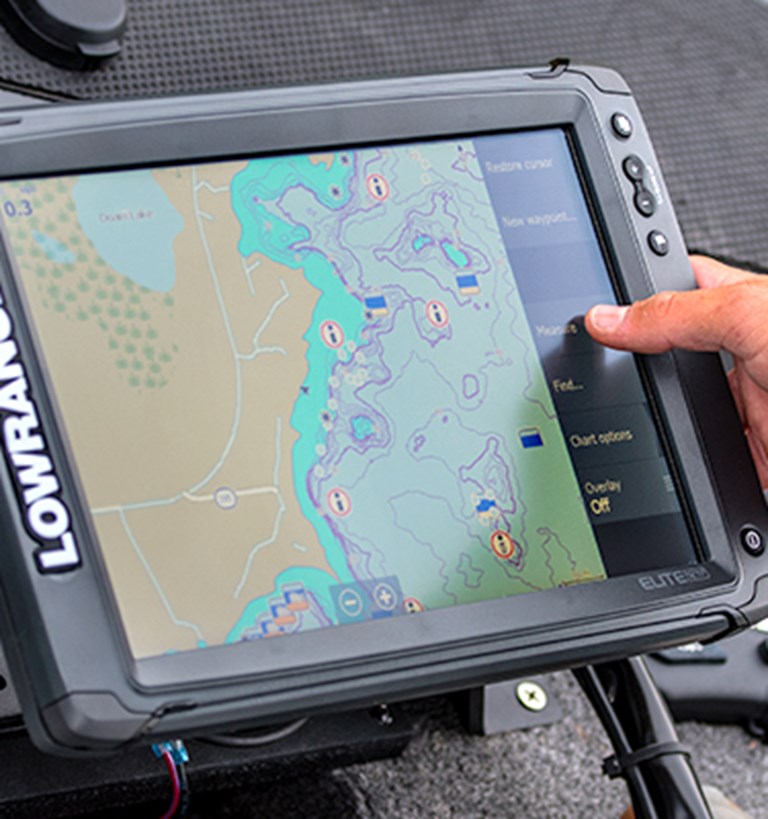

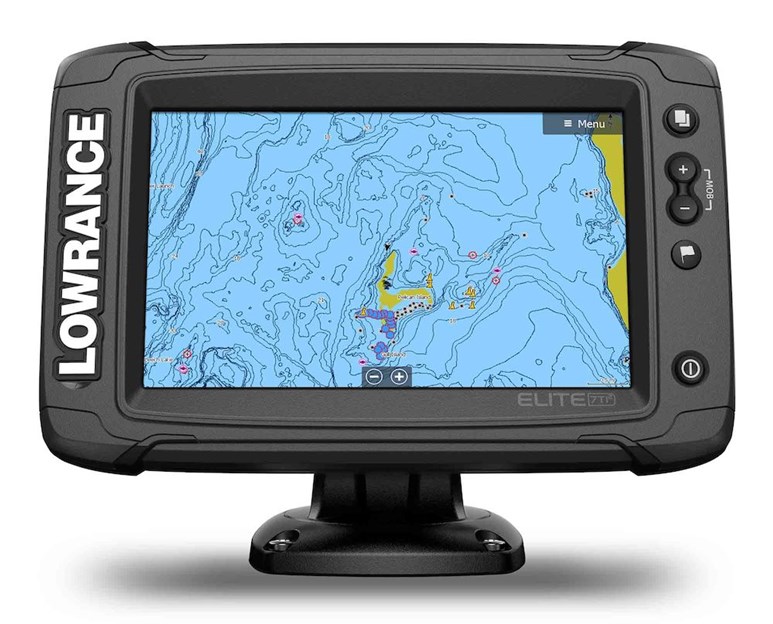

Update the maps of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fish finder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. This level of detail makes it easy to find areas where fish like to hide, like drop-offs, points, and ditches. A truly customizable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading color palettes, and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.

C-MAP® EASY ROUTING AND NAVIONICS® DOCK-TO-DOCK AUTOROUTING

Navigate faster and easier with automatic route planning. This menu-activated feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards. Requires* C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts

Subscription may be required.

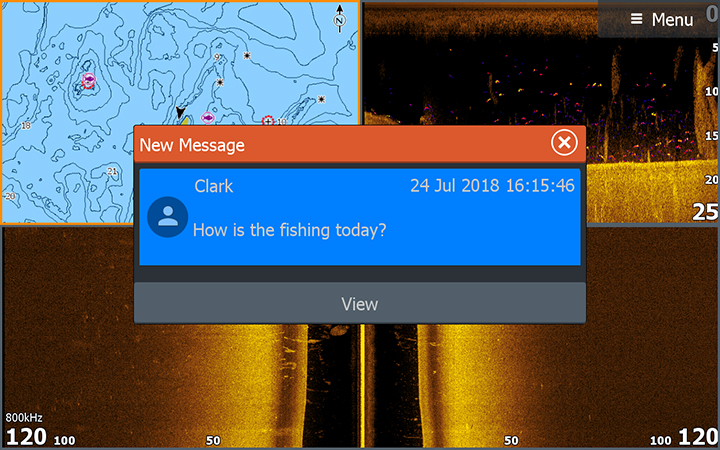

SMARTPHONE NOTIFICATIONS

Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into Elite Ti². Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your Elite Ti² display.

WIRELESS CONNECTIVITY

With integrated wireless connectivity, you are able to download software updates and C-MAP Genesis maps directly to your display, and upload detailed service reports to technical support.

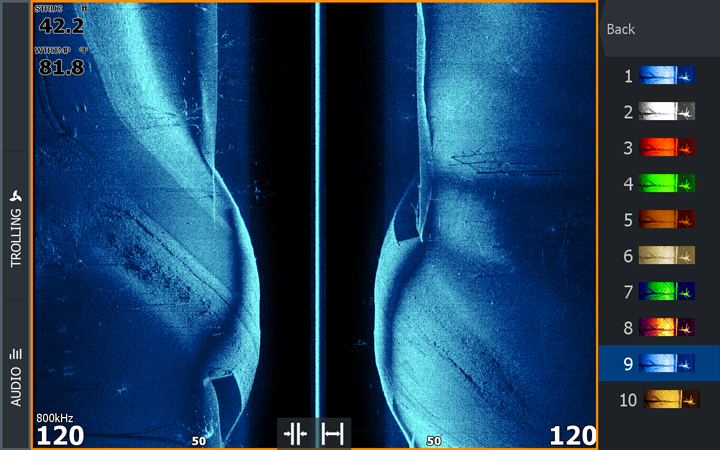

ENHANCED COLOR PALETTES

Customize the look and feel of your display with the enhanced color and contrast of Elite Ti² color palettes, making it even easier to distinguish fish from structure, the bottom and each other.

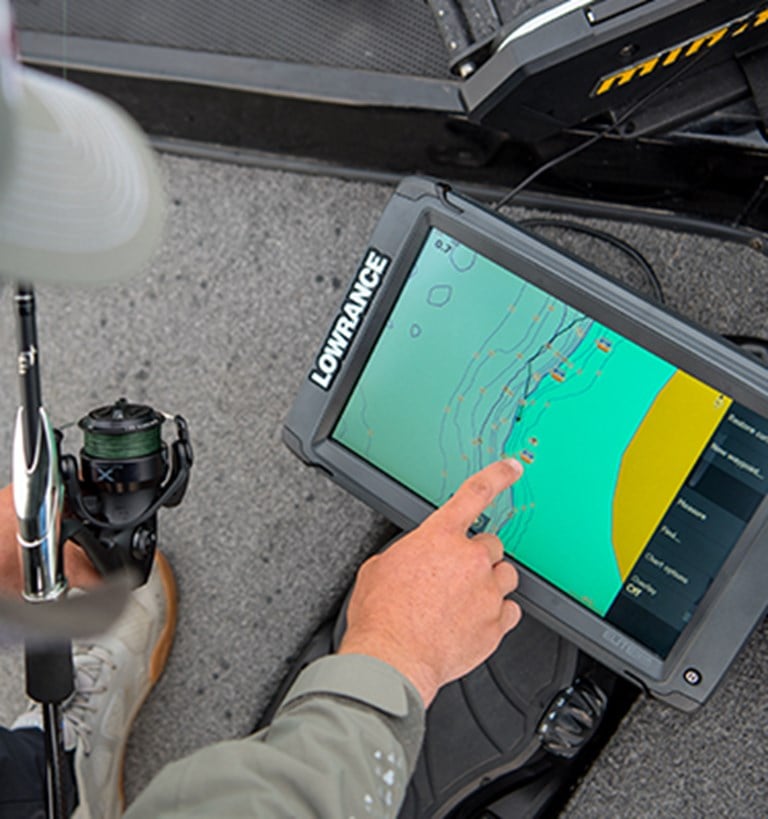

EASY-TO-USE TOUCHSCREEN

The touchscreen makes Elite Ti² displays easy to use, giving you fast, fingertip access to all Elite Ti² features and functions.

ENHANCED DISPLAY TECHNOLOGY

The high-resolution SolarMAX™ display gives you a better view of fish and structure with new, enhanced screen clarity and target separation, even in bright sunlight

bright sunlight.

Key Features

- Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) ready*
- C-MAP® Genesis Live
- Smartphone Notifications
- Wireless Networking
- FishReveal™ Smart Target View
- C-MAP® Easy Routing, Navionics® Autorouting capability**
- Preloaded C-MAP US Inland mapping with 1-foot contours on 4,000 lakes, plus a multitude of mapping options, including C-MAP, Navionics® and more)
- Easy-to-use, high-resolution SolarMAX™ touchscreen display
- Built-in CHIRP and Broadband Sounder®
- Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor***
- Integrated wireless connectivity
- SonicHub®2 compatible
- NMEA 2000® engine support
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one–touch access to system controls
* Transducer sold separately. ** Subscription may be required. *** Requires MotorGuide PinPoint Gateway.

Specifications

Display

Backlight ColorPure White LED

Display Resolution800x480

Screen Brightness1200 nits

Viewing Angles80° top/bottom, 85° left/right

Connectivity

BluetoothIntegrated

Ethernet Ports1 virtual ethernet port

Connectivity Wi FiInternal 802.11b/g/n

N2K PG NsReceive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration

NMEA 0183 Sentences supportedTX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.

NMEA 2000 Connectivity1x Micro-C

PC ConnectivityNone

SD Card Storage1 micro SD card up to 32GB

VideoNone

Cartography

Charts supportedC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Electrical

Power Consumption max0.9A @ 13VDC with backlight on full

Power Consumption min0.9A @ 13VDC with backlight on full

Power Consumption typical0.9A @ 13VDC with backlight on full

Recommended Fuse Rating3A

Supply Voltage12v DC (10.8-17VDC)

Environment

Humidity60°C, 95% relative humidity (RH) for 18 hours

Operating Temperature Range5°F to 131°F (-15°C to 55°C )

Shock Vibration100,000 cycles of 20 G

Storage Temperature Range4°F to 140°F (-20°C to 60°C )

WaterproofratingIPX7 with card door closed

GPS

CorrectionDGPS, WAAS

GPS Receiver Channels16

Position Accuracy20m RMS

Time to First Fix30s

Update rate10 Hz

MFD

AISAIS Chart overlay. Target vessel details.

AutopilotMotorGuide Xi5/Xi3 Trolling Motor *requires Motorguide PinPoint Gateway

Cartography includedC-MAP US Inland Basemap (US Inland models)Navionics basemap (AMER, AUS/NZ and US Costal/ROW models)

Digital SwitchingNone

GPS10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

Internal StorageNone

MultimediaNone

Sonar CompatibilityIntegrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:StructureScan

Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

WeatherNone

Physical

Compass Safe12″ (300mm)

Mounting TypeGimbal Bracket or Dash Flush Mount

Weight2.20 lbs (1.00 kg)

Other

InterfaceTouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power

LanguagesLanguage on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Warranty Period2 years + 3 additional years of upgrade options. Totaling 5 years
